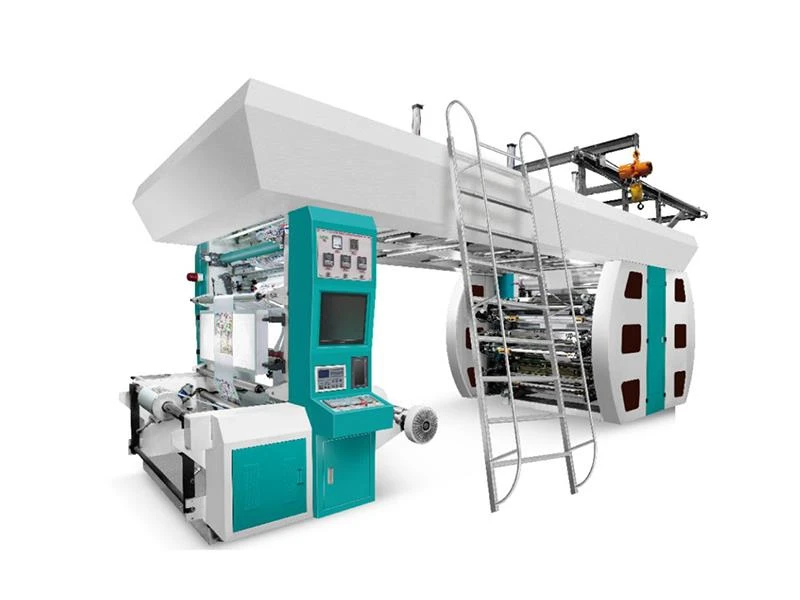

This machine is suitable for printing such packing materials as polyethylene, polyethylene plastic bag glass paper and roll paper etc. And it is a kind of ideal printing equipment for producing paper packing bag for food, supermarket handbag, vest bag and clothes bag, etc.
Characteristics:
Reasonable structure, advanced technology, easy operation, stable performance, accurate color register.
Adopxing high-quality motor, high-quality inverter, save theelectricity, reduce the run fluctuation.
When the machine is stopped working, printing rolls still keep moving; when rise the printing roller ,ink motor running automatically ;when fallen the printing roller, ink motor stop running automatically.
The machine is equipped with blower and heater; and the heater employed central temperature control system.
The use of individual drying oven and cold wind system can effectively prevent the ink adhesion after printing.
Roller adopxs special steel processing, and through special treatment, greatly reduce the beating range.
Printing roller uses static balance and dynamic balance processing, hard anode oxidation treatment, small resistance, beating small, achieves finally perfect printing effect.
Accurate printing effect achieved by special gear transmission device.
The printing machine all can choose advance configurations to achieve the high quality, the high-definition effec
Model | YTC-61000 |
Material feeding width | 1000mm |
Max Printing Width | 960mm |
Colors | 6colors |
Material | PE PET BOPP pvc |
Thickness of plate | 1.7mm 2.28mm 3.94mm Can be customized |
Maximum machine speed | 150m/min |
Printing speed | 80-120m/min |
Structure type | Central impression (central drum) |
Register precision | ±0. 15mm |
Suitable ink | Water based ink/solvent ink |
roller length: 1000mm
effective printing roller length: 960mm
roller core diameter: 76mm
discharge maximum diameter: 1000mm
single unwinder system,pneumatic loader for unwind system
Automatic stop machine when break the material ,when machine stop, keep tension and avoid the material loose or line deflection .
Air shaft
EPC(edge position control) can adjust the unwind move left and right.
Automatic tension control and magnetic power
printing consists of: plate roller, ceramic anilox roller, rubber roller,chamber doctor blade
plate roller circumference:300-800mm
plate material: resin plate or rubber plate
Transmission: 0 helical gear drive
printing chromatography: 360-degree rotation
adjustment method: By Manual (Automatic printing after adjust by manual, when start machine, no need register color again, the printing pressure and register all keep the same.)
Printing roller lifting system:Automatic Hydraulic cylinder control roll up and down.
roll core diameter: 76mm
discharge maximum diameter: 1000mm
single unwinder system,pneumatic loader for unwind system
Automatic tension control and magnetic power
Air shaft
Rewinding type: Big roller friction rewinder.
The main list of detailed configuration Remark:the main motor and key parts can change which brand as your request. | |
1.Main motor | Tai bang |
Human computer touch screen(PLC) | CHINA |
Eletrical parts | schneider |
Auto tension control | Haitai |
Frequency conversion controller | Taiwan |
Main bearing | NSK |
EPC | SHENZHEN |
Ceramic anilox roller | China |
Vedio inspection | kesai |
